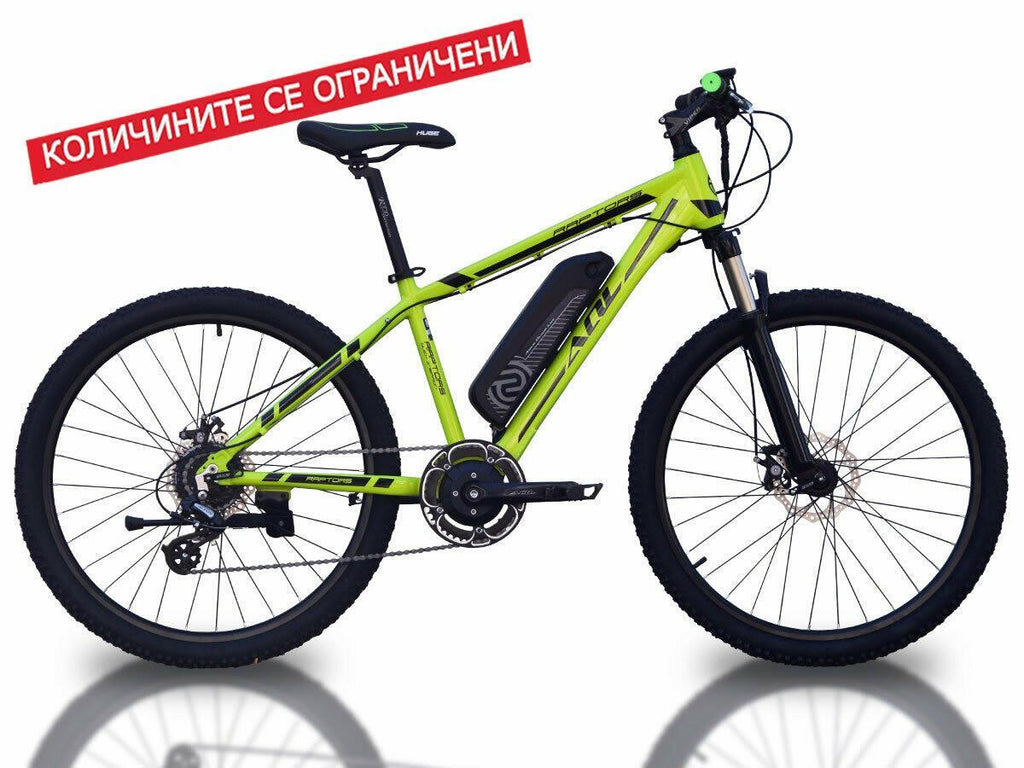

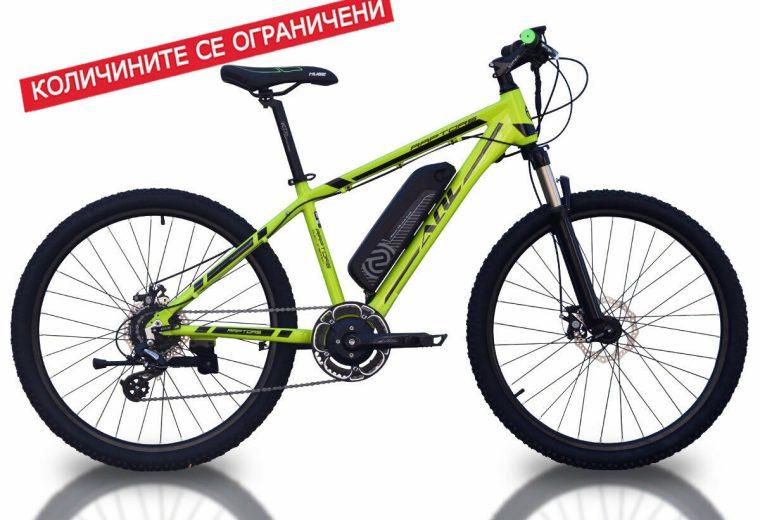

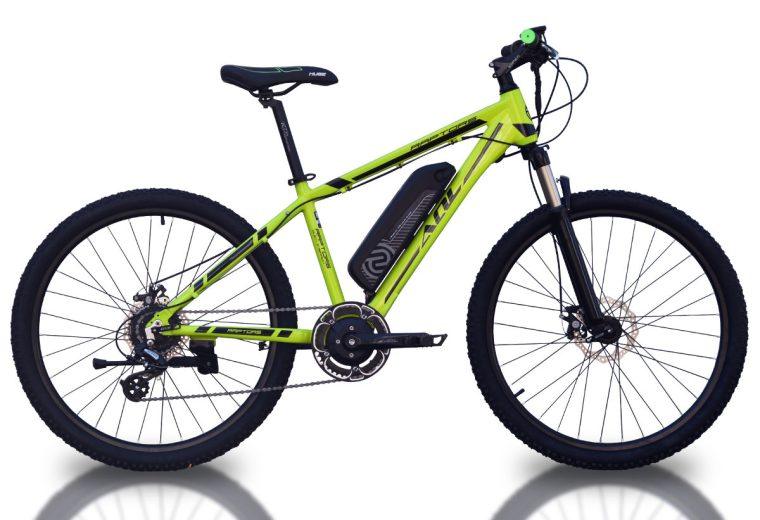

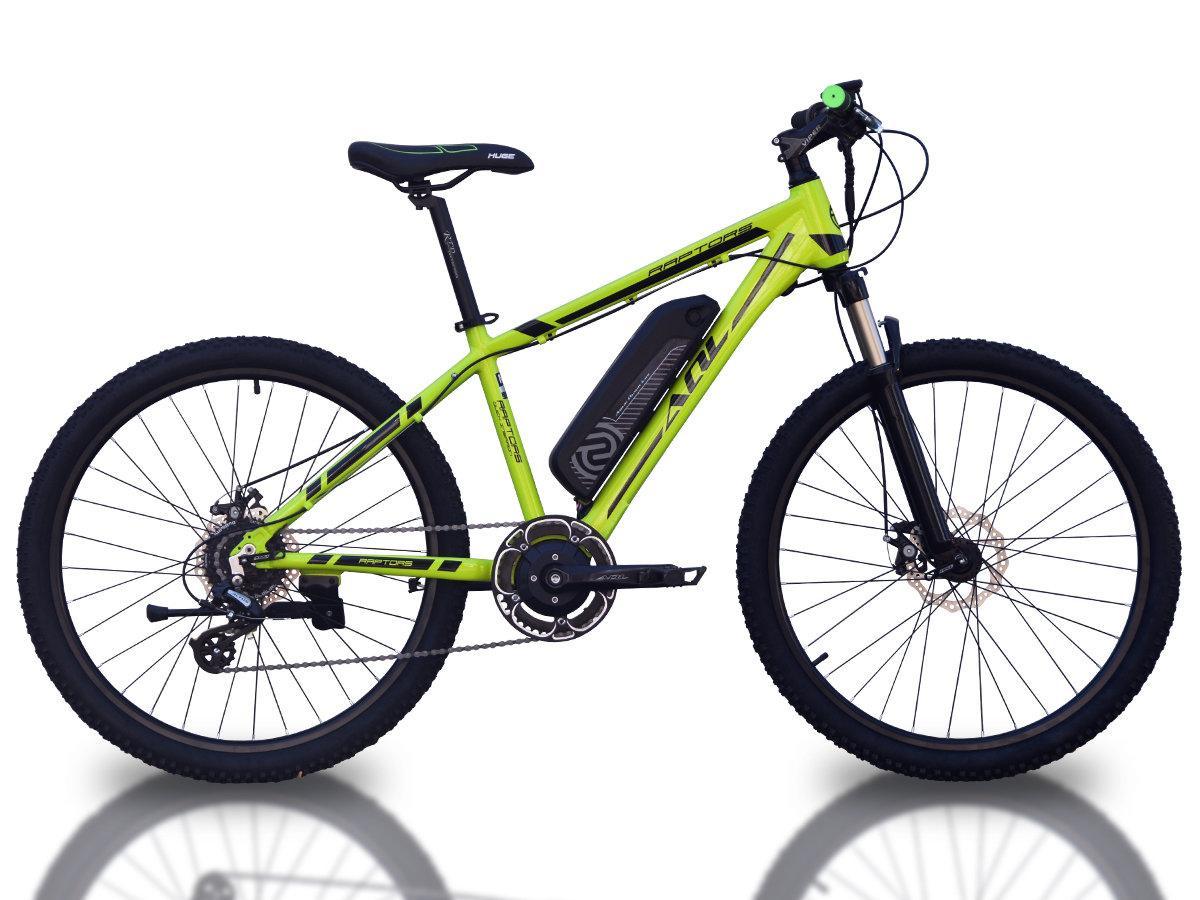

E-VIPER RAPTOR

—MOTOR—

– Motor S240

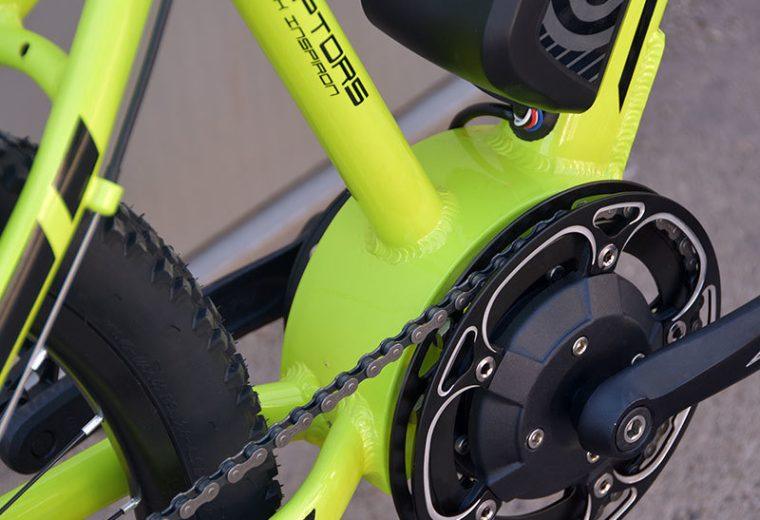

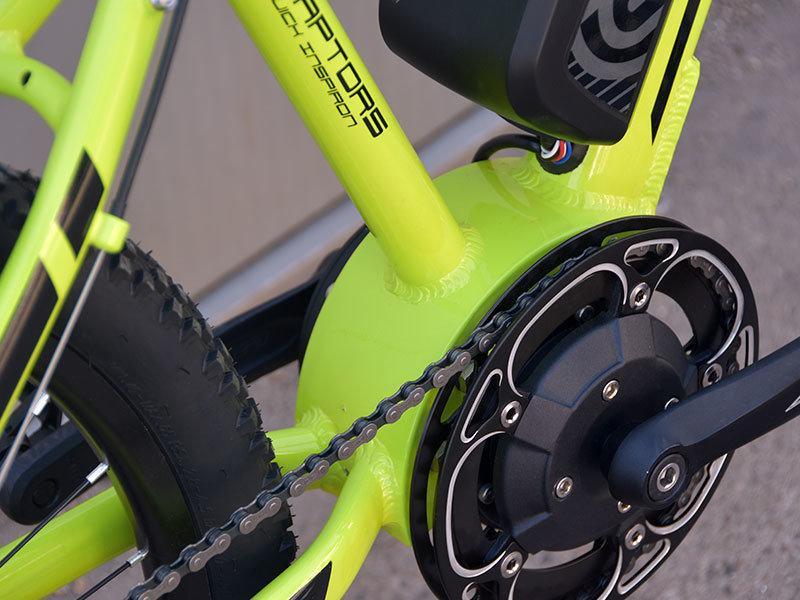

– AQL center drive motor

– Brushless, 36V,3000rpm

– Motor rated power 240W

– Reduction gear ratio: 1︰38

– Pedal Assistant System (PAS)

– Fully autonomous drive, no pedaling

– Output torque 90Nm

– Weight of motor 4Kg

– 30 degrees climbing ability

– 3sec 0-20 km/h speed up

– Maximum Speed up to 30-50Km/h

– Intelligent brushless controller

– Self-developed PEDELEC system

—BATTERY—

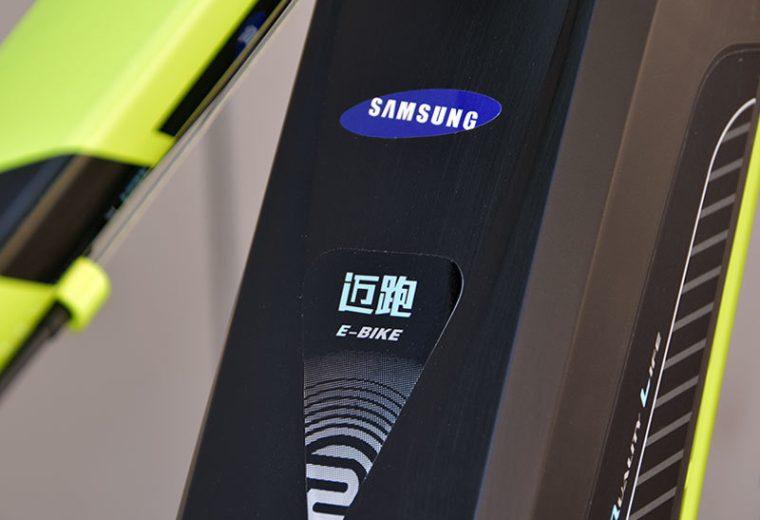

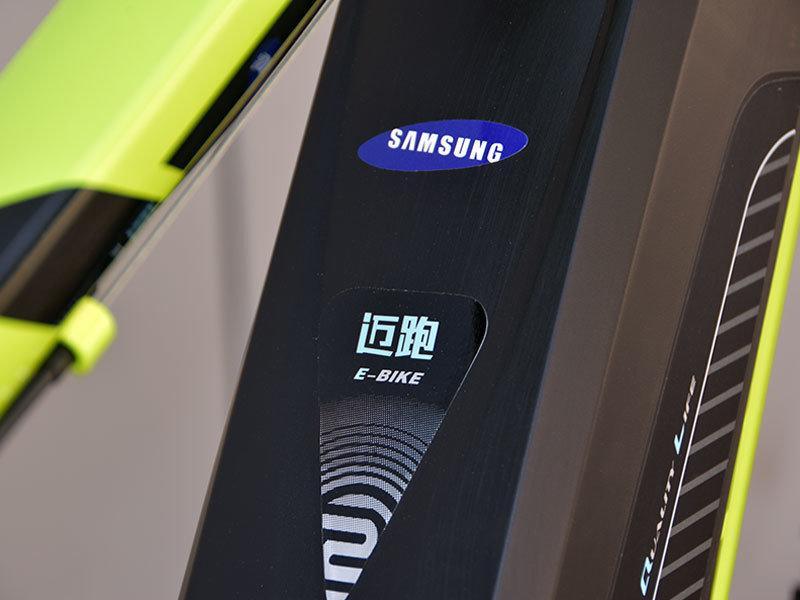

– 36v, 10.4Ah Samsung 18650 Li-Ion cells

– Weight ≤2.78Kg

– Charging time 4-6hrs

– Distance per charge ~40km (PAS)

– onboard status display, LED

– Large Dot Matrix LCD screen

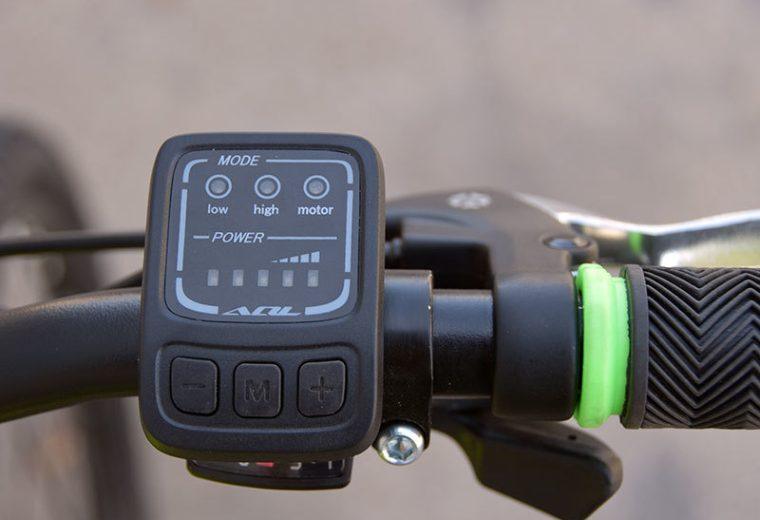

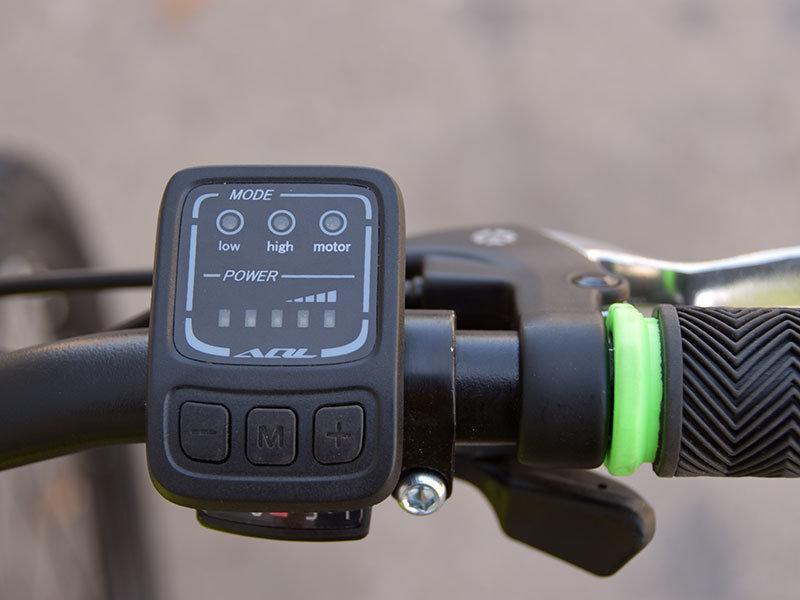

– Separate control panel for left/right thumb

– Detachable display unit

– 5 support modes

– Electric Throttle,wired

—FRAME—

– Aluminum 6061 ALLOY

– Anodized paint

– Size M, fits riders 160-175cm

– Seat post 27.2mm, 300mm

– Replacable deraileur hanger

—FORK—

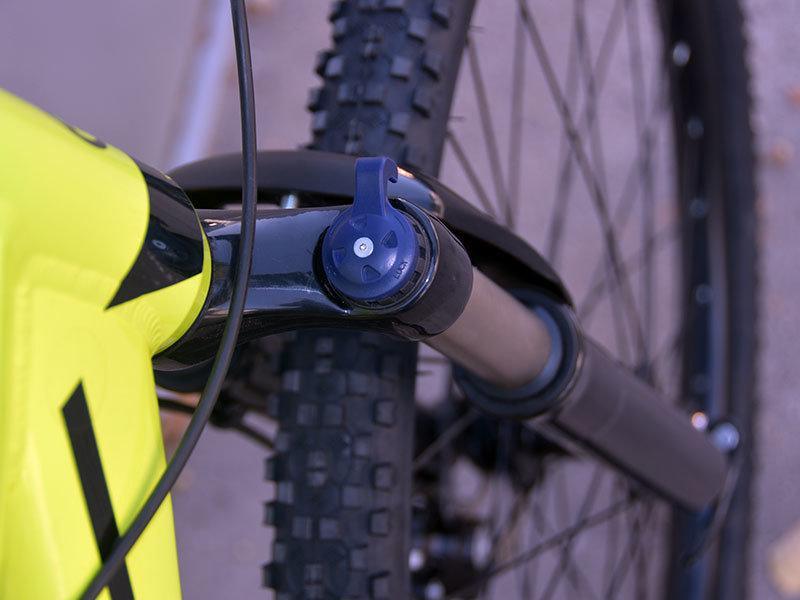

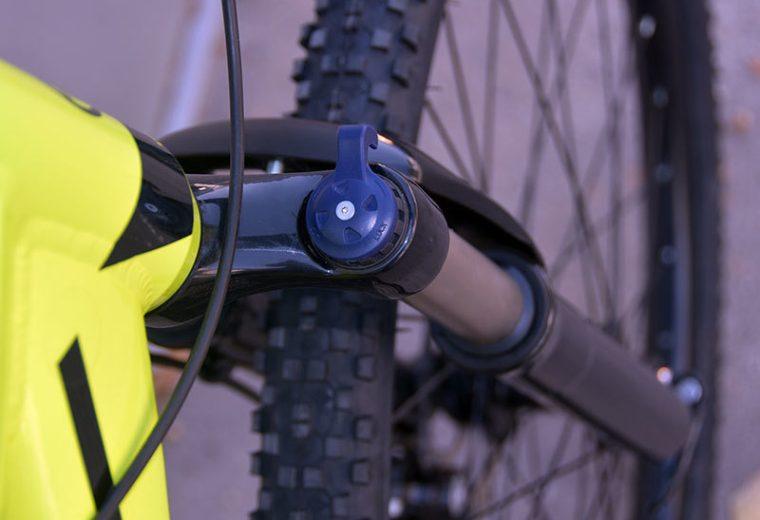

– ZOOM susspension fork

– Preload adjustable,Mechanical lockout, 80mm travel

—DRIVE SYSTEM—

– Chain KMC

– Chain wheel single, 42teeth, double covers

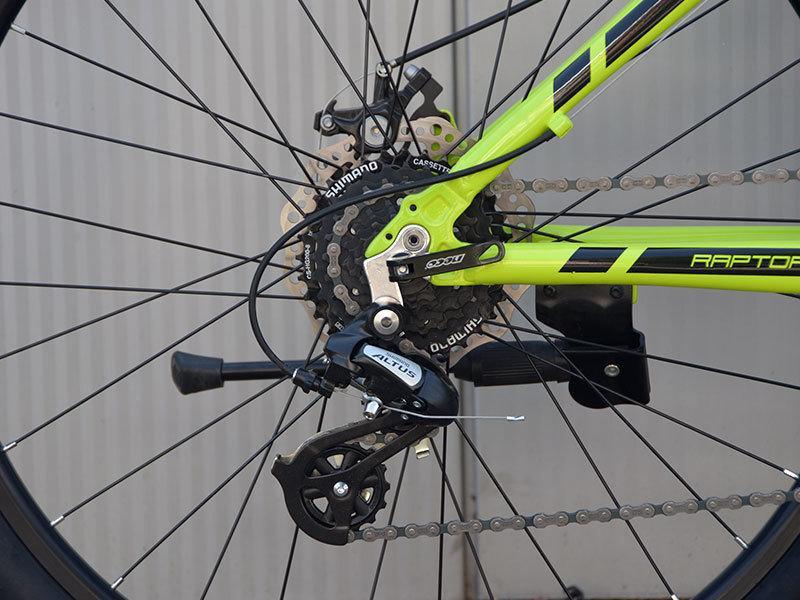

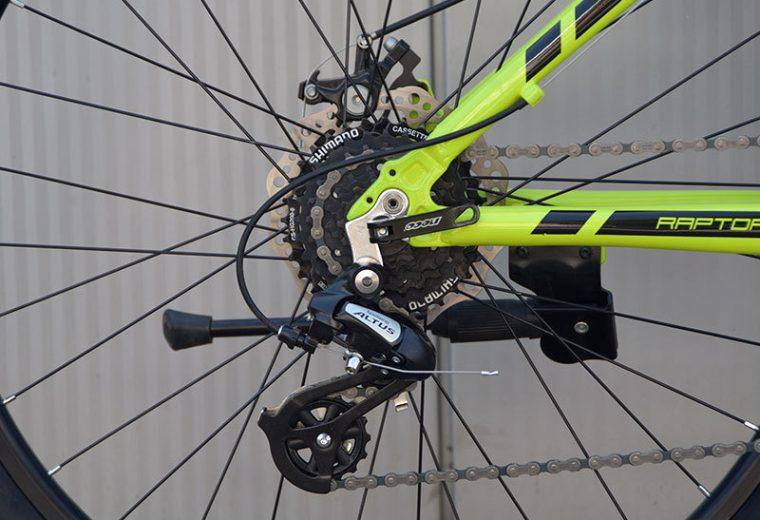

– Shimano ALTUS rear deraileur 8sp, RD-M310

– Shimano ALTUS rear shifter 8sp, SL-M310

– Shimano 8sp Hyperglide cassette HG200-8 12-32t

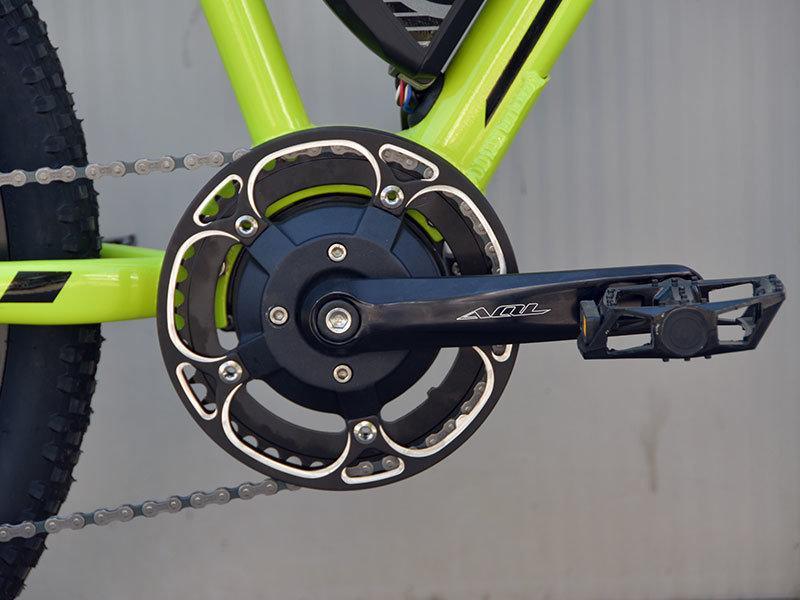

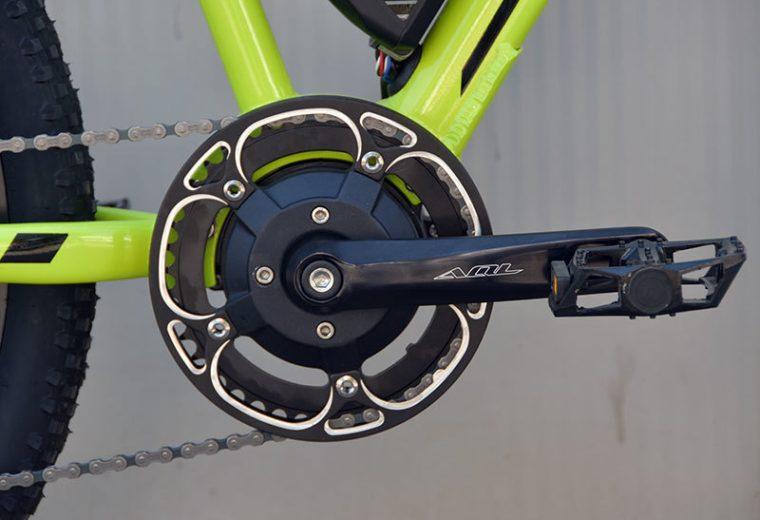

-LASCO crankset, 170mm

– MTB flat (platform) pedals

—WHEELS—

– 26 inch double wall rims

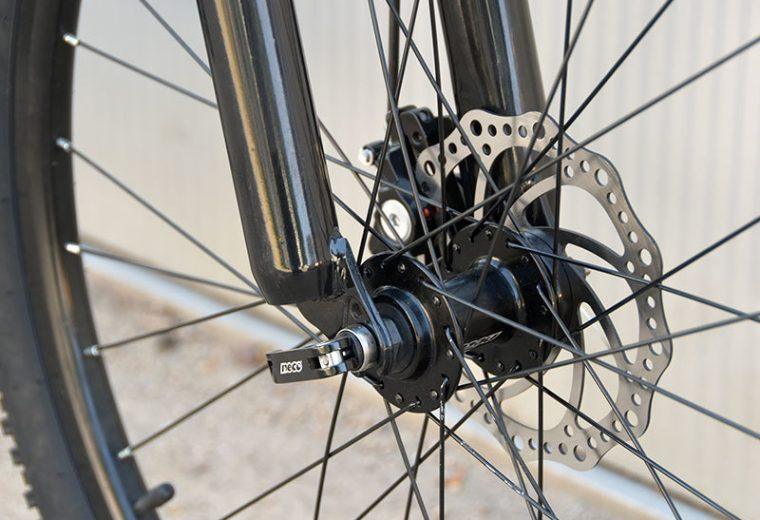

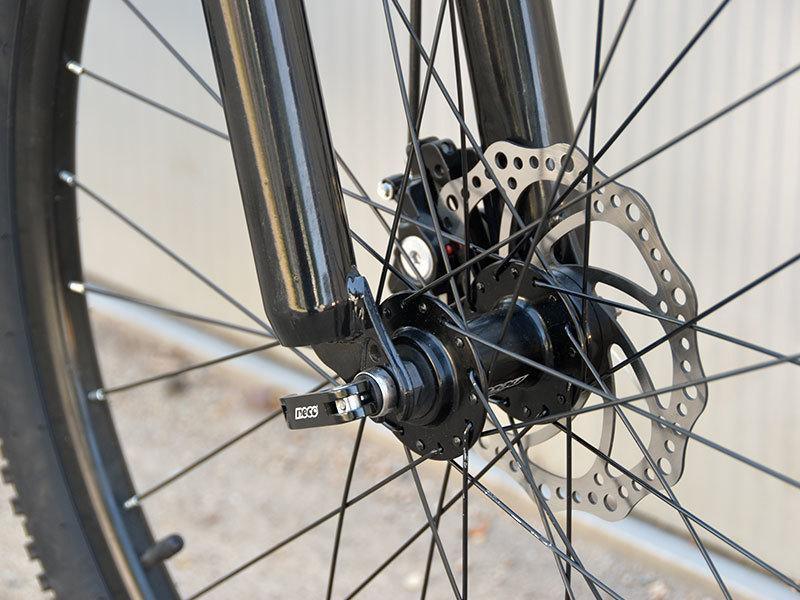

– Disc mount front and rear NECO hubs, QR open/close

– Freehub body, cassette

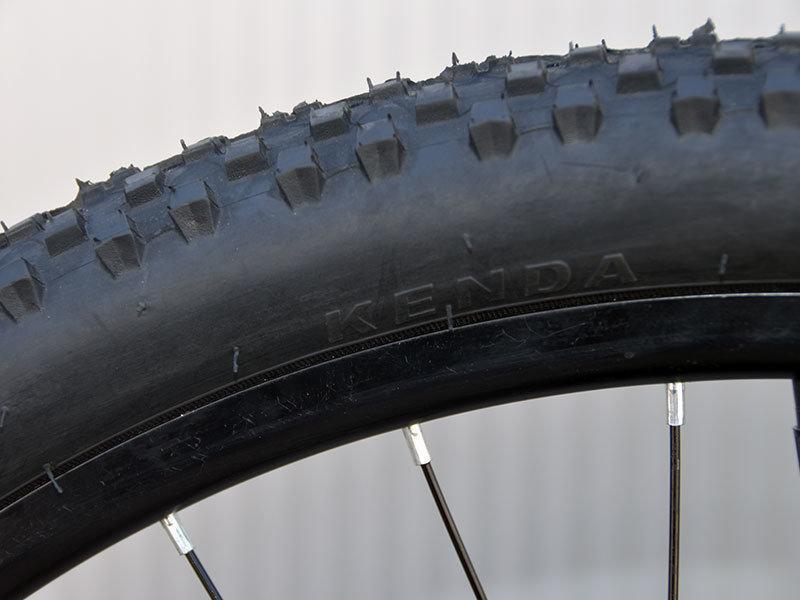

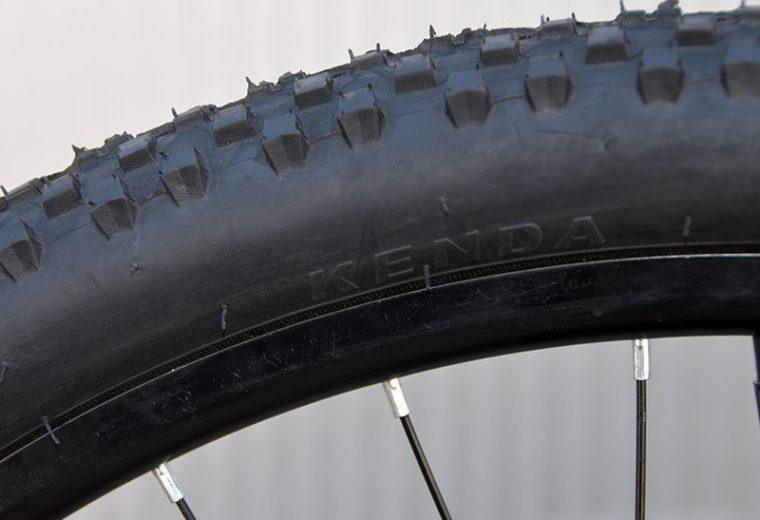

– KENDA 26×1.95 tires (50-559)

—STEERING—

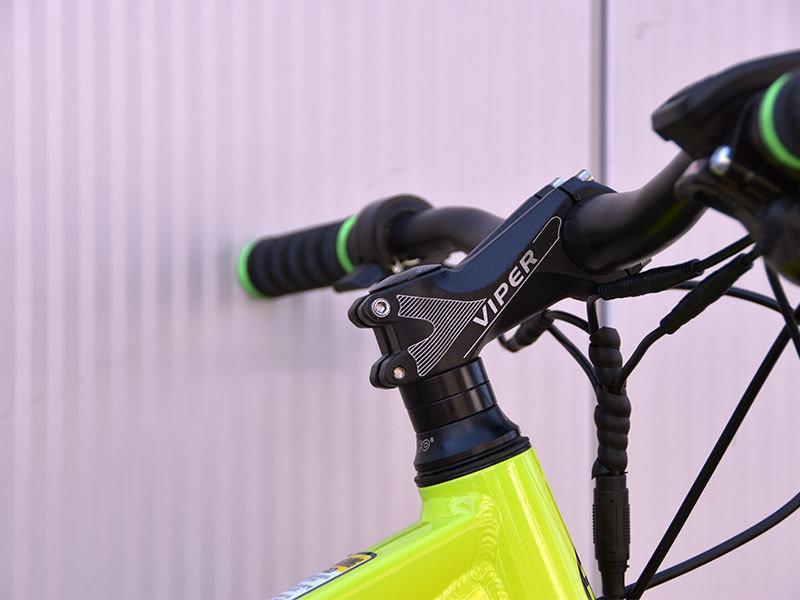

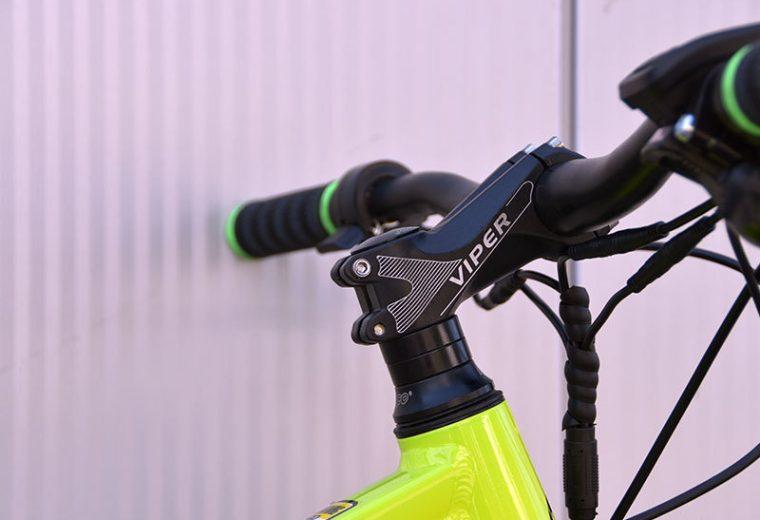

– 700mm steerer Viper, 2cm upsweep, 2cm backsweep,6061 Alu Alloy

– 75mm stem,31.8 clamp 15degree up

– NECO headset, integrated
