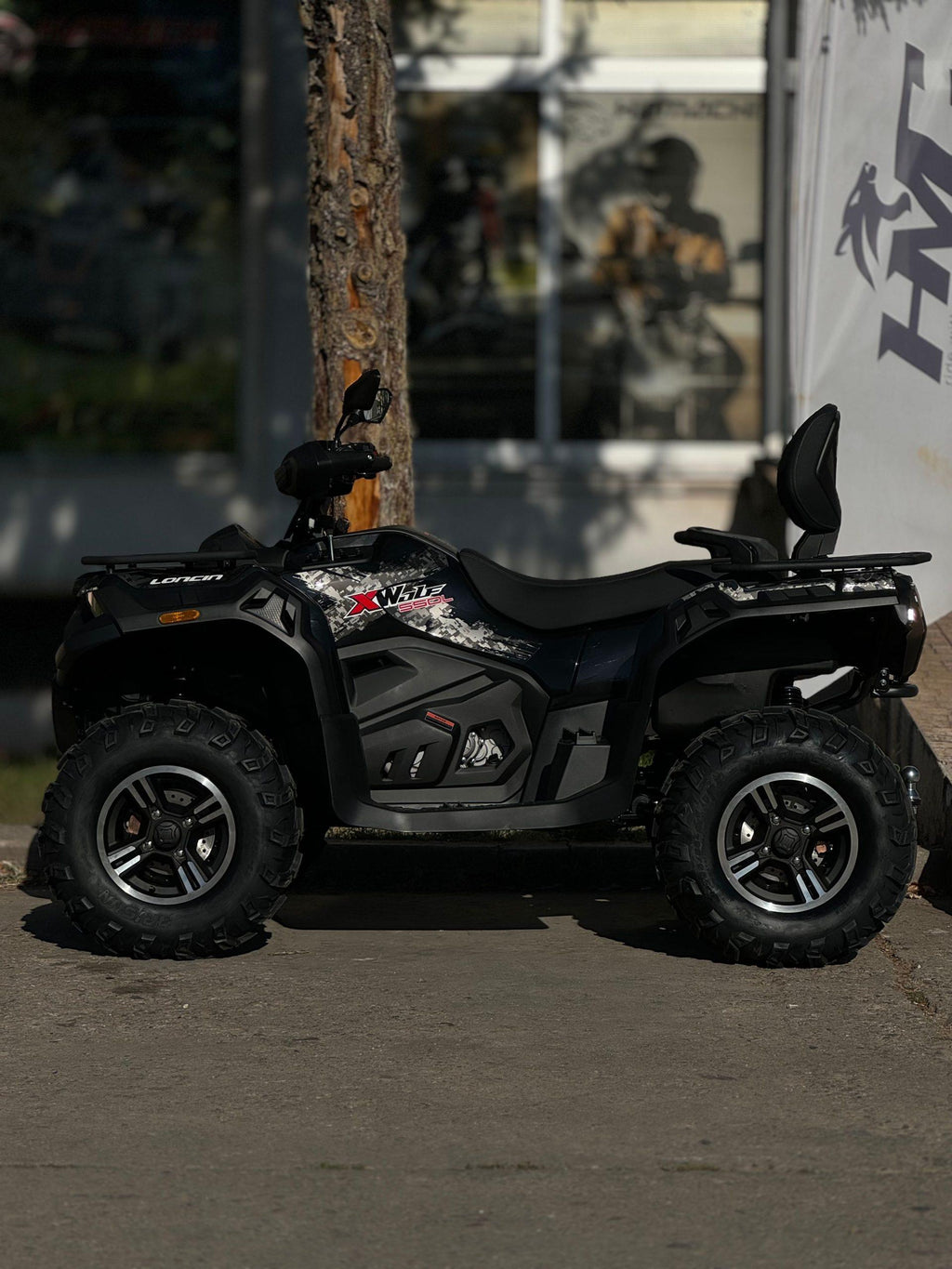

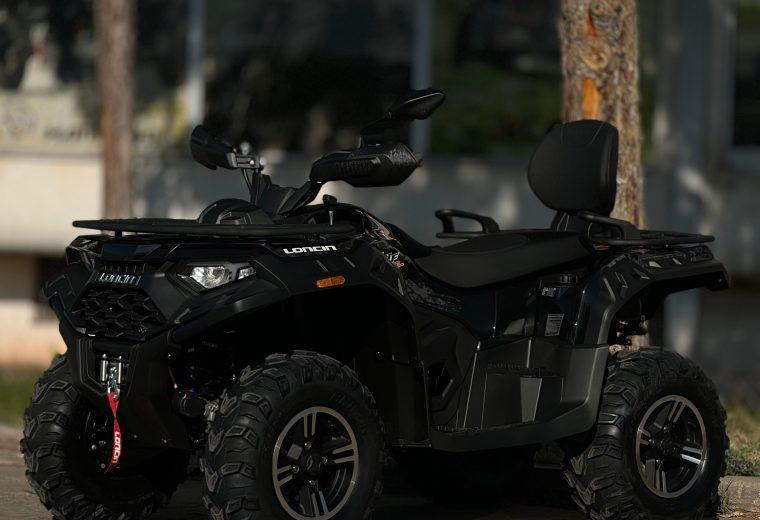

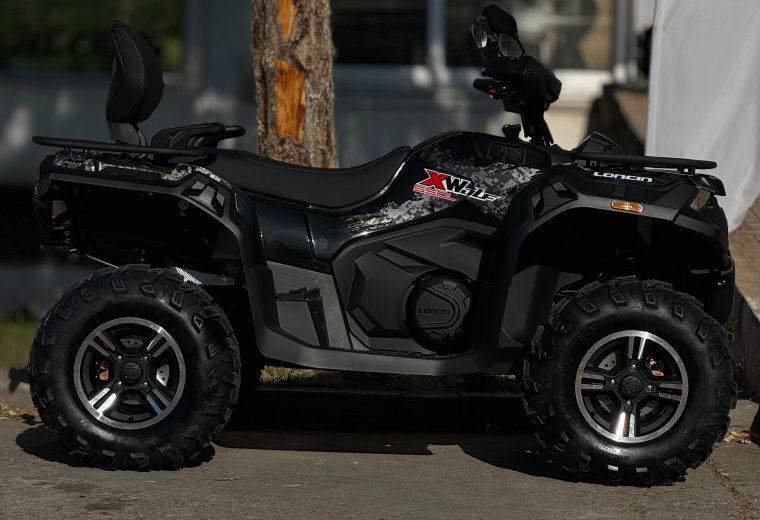

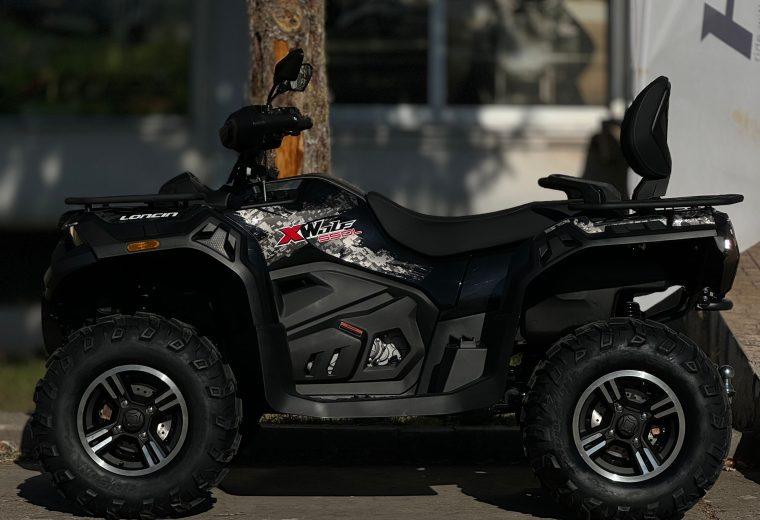

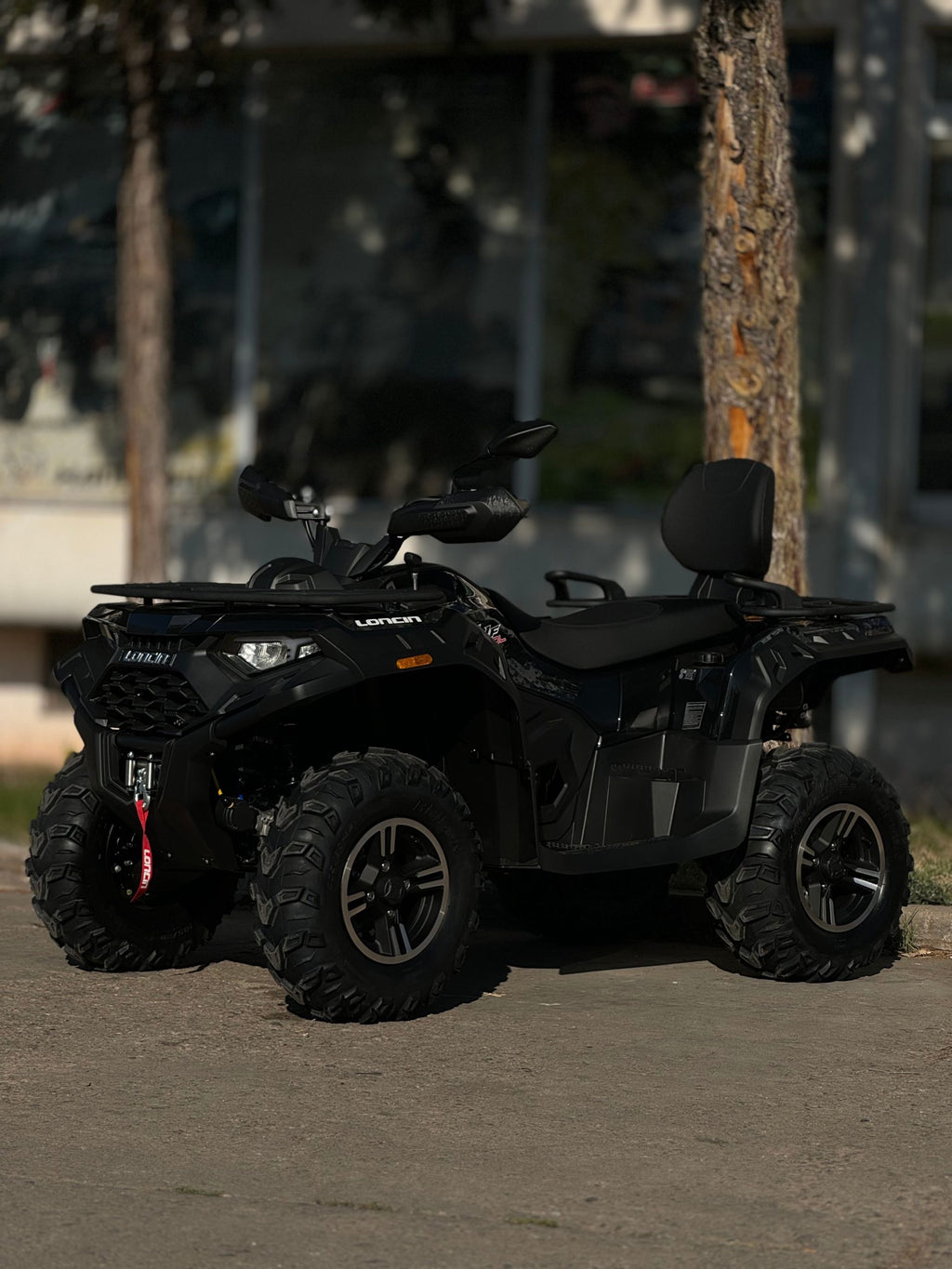

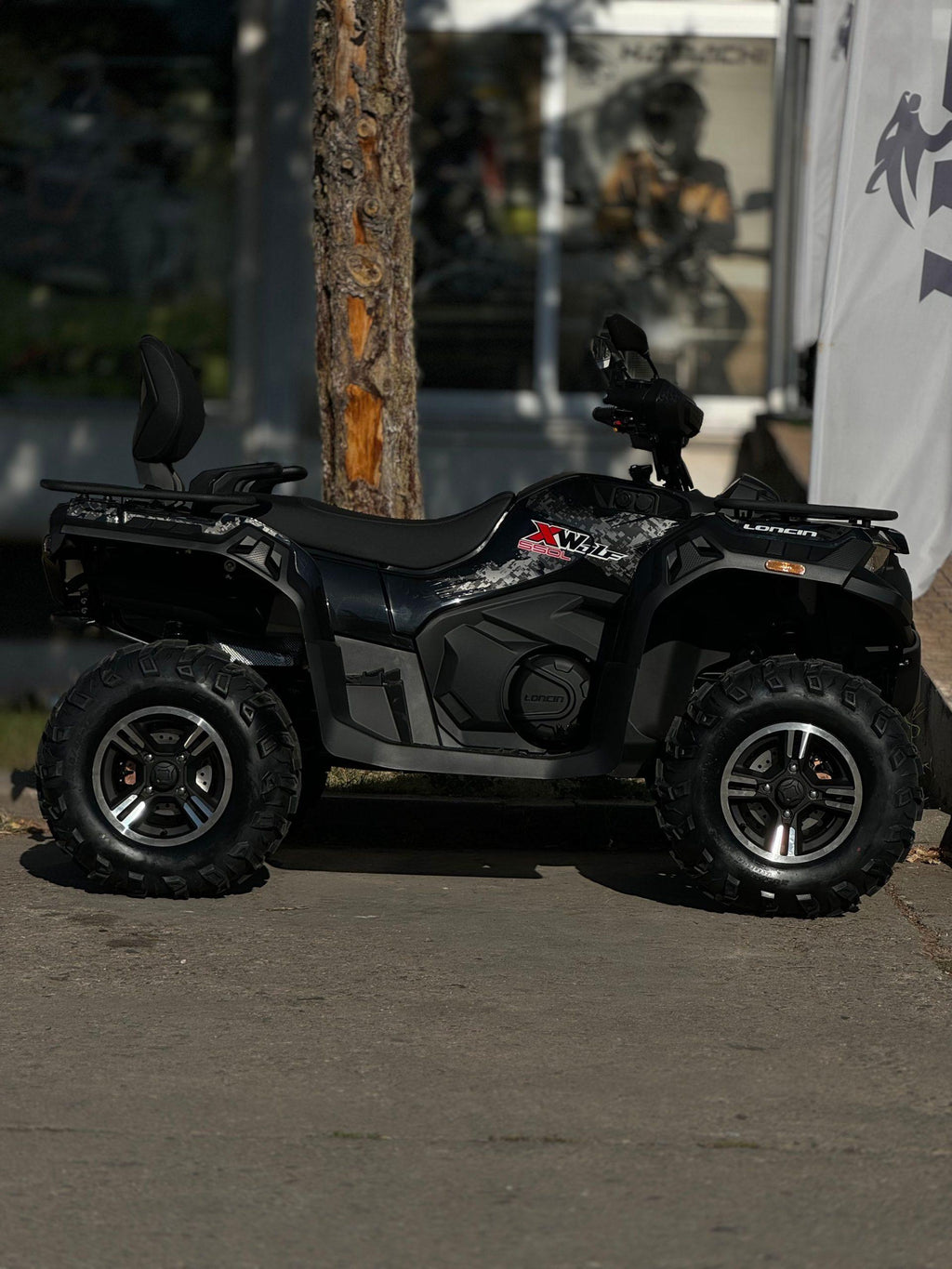

The LONCIN XWOLF 550 is a UTV with a water-cooled engine and CVT transmission, equipped with a winch and electric power steering (EPS). Built for off-road and farm driving.
Key Features
- 499.5cc single-cylinder engine with 50.3 HP
- Electric Power Steering (EPS)
- Winch with front recovery rope
- 25 L fuel tank
Technical Specifications
Engine and Transmission
| Engine type | 1 cylinder, 4-stroke, water-cooled |
| Displacement | 499.5 cc |
| Bore | 91 mm |
| Compression | 11:1 |
| Maximum power | 37 kW (50.3 HP) at 6,700 rpm |
| Maximum torque | 53 Nm at 5,200 rpm |
| Fuel system | Bosch EFI |
| Ignition system | CDI |
| Starting system | Electric |
| Transmission | CVT, P/R/N/H/L, parking brake |
| Maximum speed | 100 km/h |
Chassis, Suspension and Brakes
| Front suspension | Double A-arm, 190 mm travel, mixed gas and oil shocks |
| Rear suspension | Double A-arm, 230 mm travel, mixed gas and oil shocks |
| Front tires | AT25x8-12, steel rims |
| Rear tires | AT25x10-12, steel rims |
| Front brake | Disc Ø210 mm |
| Rear brake | Disc Ø210 mm |
Dimensions and Weight
| Length x Width x Height | 2,220 x 1,190 x 1,320 mm |
| Wheelbase | 1,480 mm |
| Ground clearance | 280 mm |
| Weight (with oil and fuel) | 348 kg |
| Fuel tank | 25 L |
Equipment
- 20Ah gel battery
- Multifunctional color LCD display
- Winch with front recovery rope
- Electric Power Steering (EPS)
- DC + USB sockets
- Tow hitch (attachment point)
- Handlebar guards
