| CHASSIS | |
|---|---|
| Front shock absorber | hydraualic pressure, spring |
| Rear shock absorber | hydaulic pressure, spring |
| Chassis structure | Cradle type |
| Steering Head Angle | 48* |
| Front Brike | Disc Brake |
| Rear Brake | Disc Brake |
| Battery | 12V 6.5ah, liquid type |
| Fr tire | 110/90-17 |
| Rr Tire | 130/80-17 |

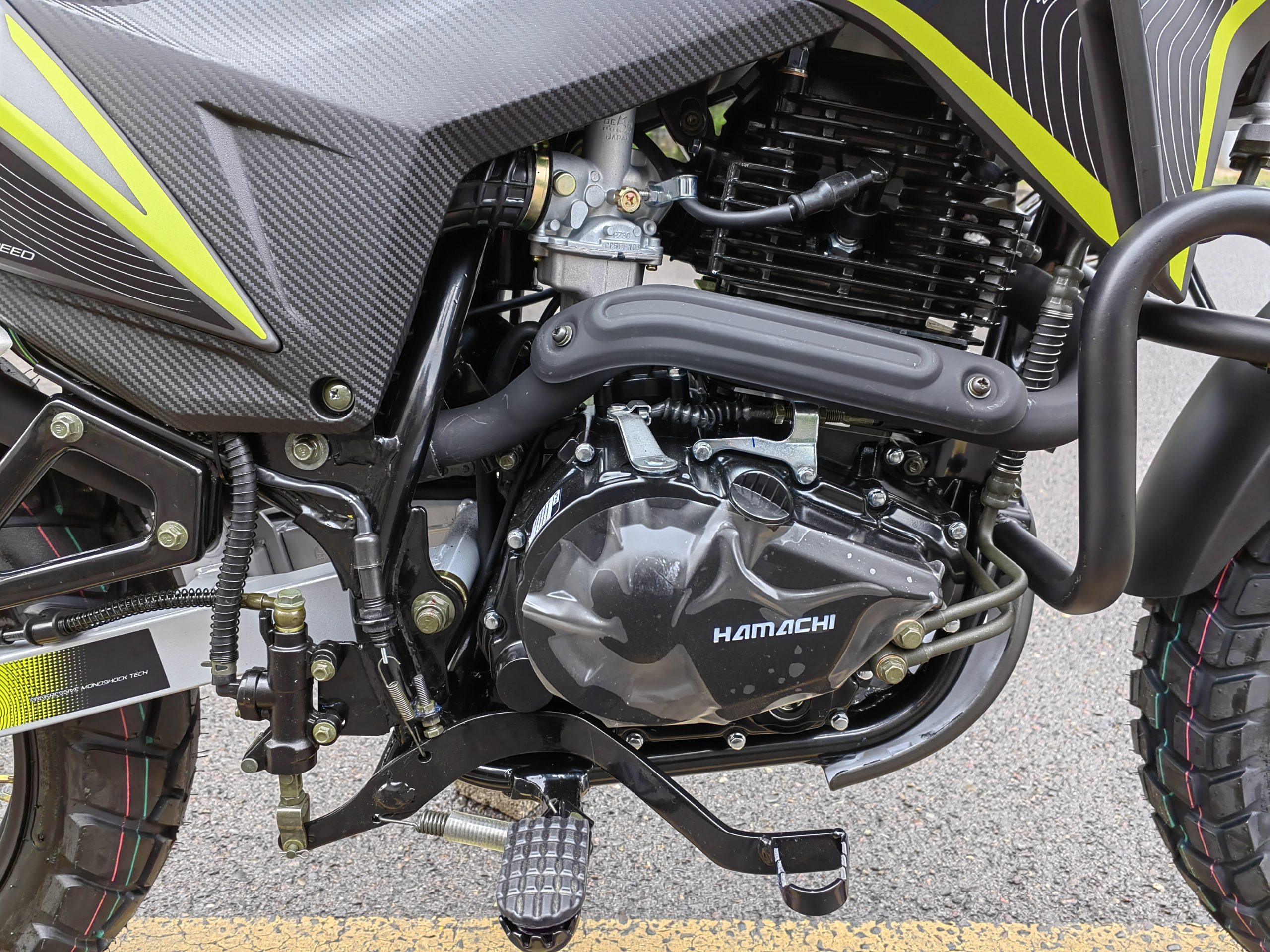

| ENGINE | |
|---|---|
| Type | RE250, CBB balance engine, air-cool, single cylinder, 4-stroke, 6speeds |
| Displacement(ml) | 223 |
| Bore X Stroke | 65.5×66.2 |
| Compression Ratio | 9.21: |
| Max.Power | 13.2/7500 |
| Max, Torque | 17.2/6500 |
| Fuel Consumption (L/100km) | 2.8 |
