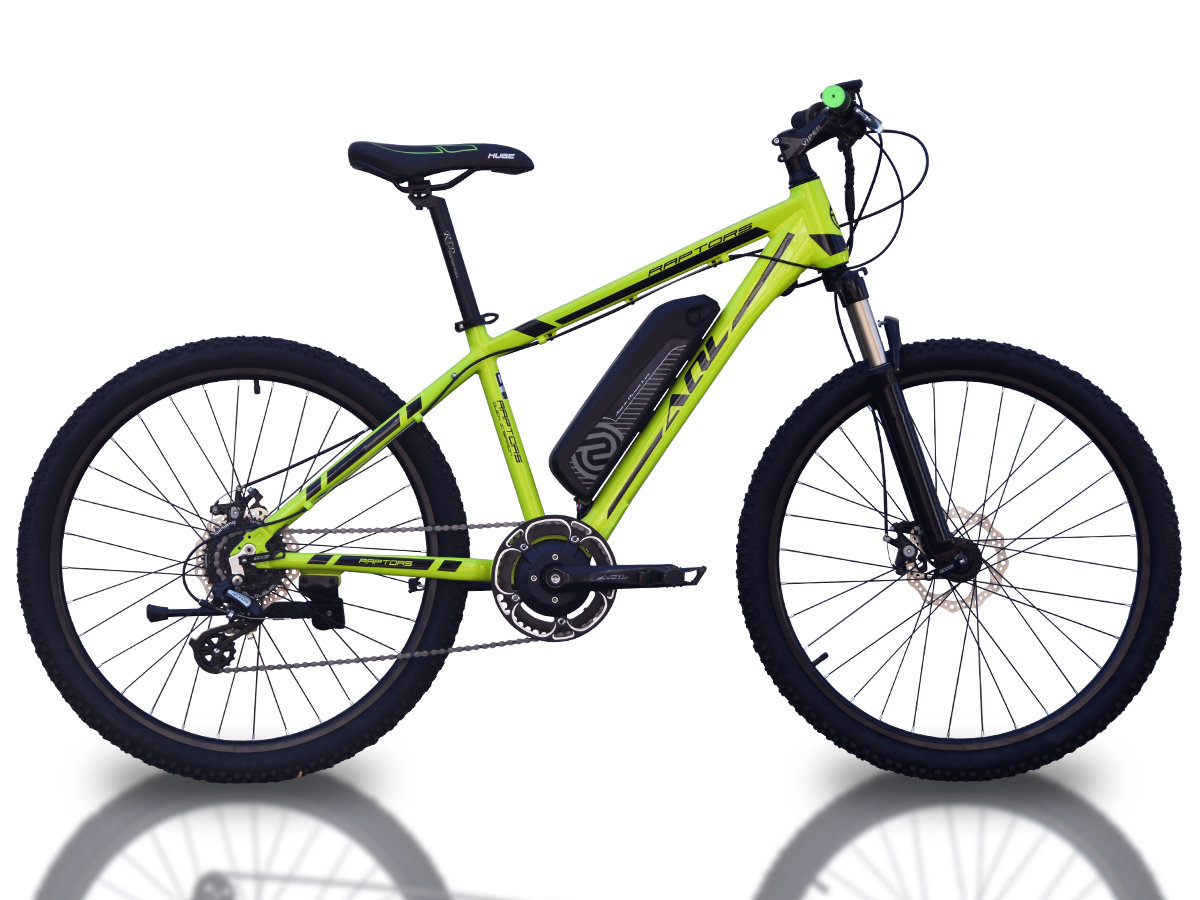

E-VIPER RAPTOR

---MOTOR---

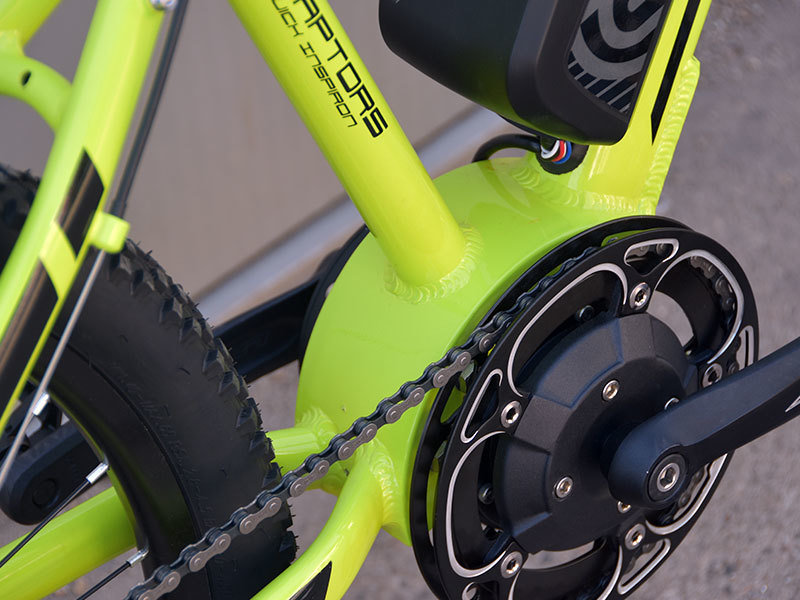

- Motor S240

- AQL center drive motor

- Brushless, 36V,3000rpm

- Motor rated power 240W

- Reduction gear ratio: 1︰38

- Pedal Assistant System (PAS)

- Fully autonomous drive, no pedaling

- Output torque 90Nm

- Weight of motor 4Kg

- 30 degrees climbing ability

- 3sec 0-20 km/h speed up

- Maximum Speed up to 30-50Km/h

- Intelligent brushless controller

- Self-developed PEDELEC system

---BATTERY---

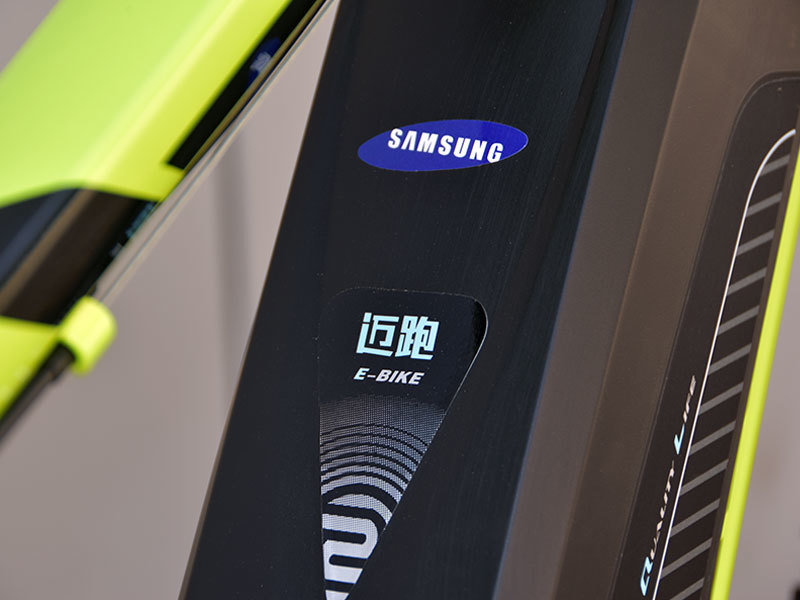

- 36v, 10.4Ah Samsung 18650 Li-Ion cells

- Weight ≤2.78Kg

- Charging time 4-6hrs

- Distance per charge ~40km (PAS)

- onboard status display, LED

- Large Dot Matrix LCD screen

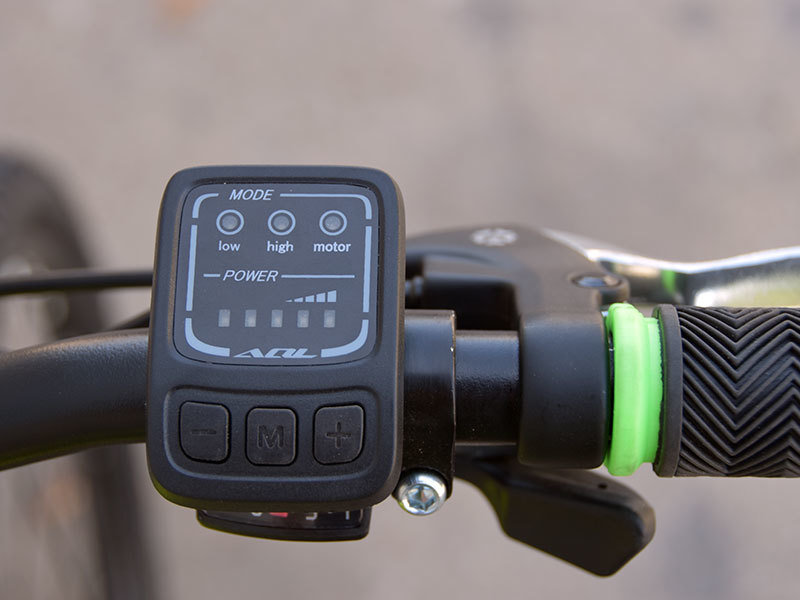

- Separate control panel for left/right thumb

- Detachable display unit

- 5 support modes

- Electric Throttle,wired

---FRAME---

- Aluminum 6061 ALLOY

- Anodized paint

- Size M, fits riders 160-175cm

- Seat post 27.2mm, 300mm

- Replacable deraileur hanger

---FORK---

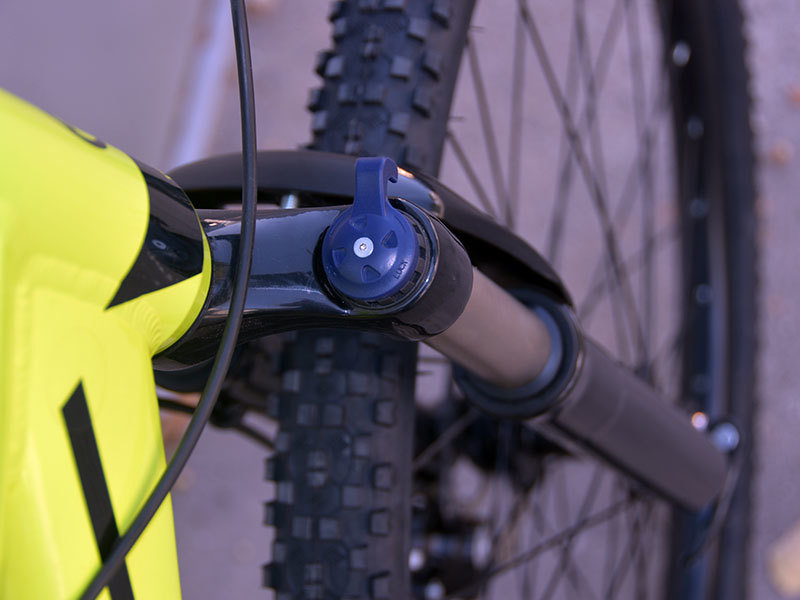

- ZOOM susspension fork

- Preload adjustable,Mechanical lockout, 80mm travel

---DRIVE SYSTEM---

- Chain KMC

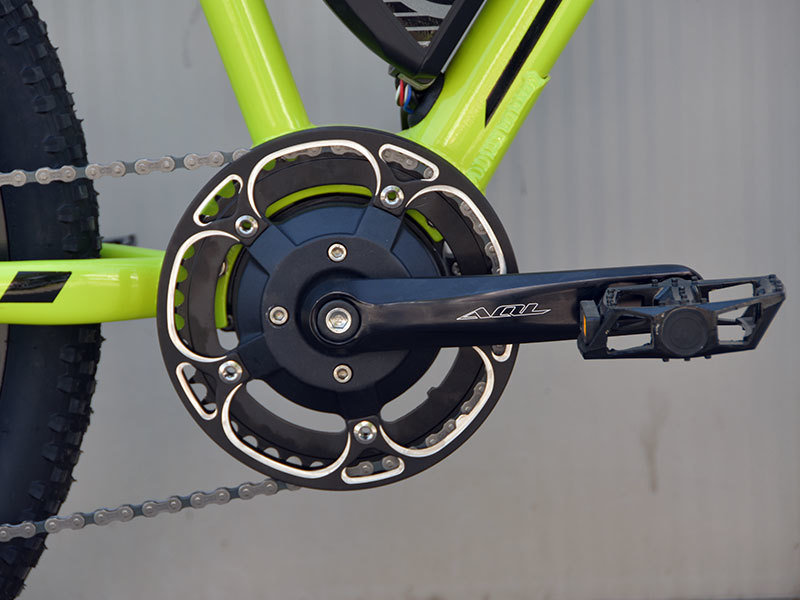

- Chain wheel single, 42teeth, double covers

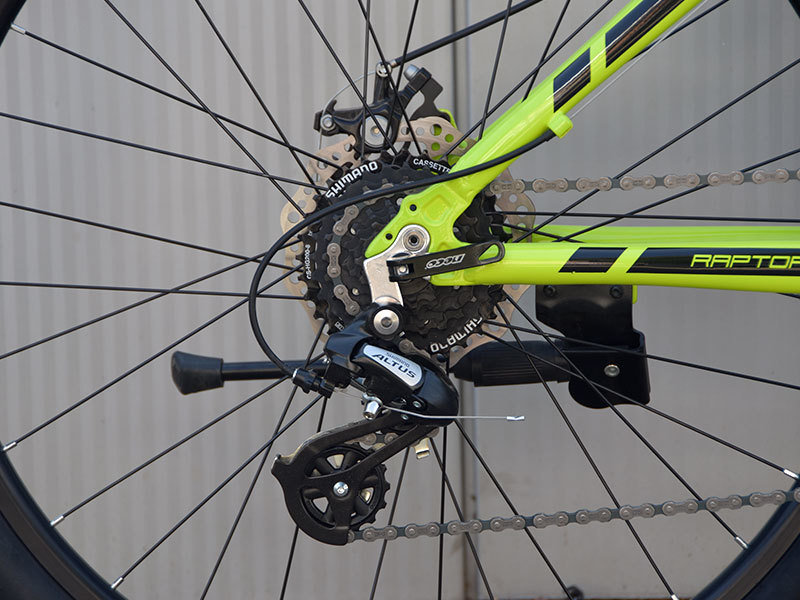

- Shimano ALTUS rear deraileur 8sp, RD-M310

- Shimano ALTUS rear shifter 8sp, SL-M310

- Shimano 8sp Hyperglide cassette HG200-8 12-32t -LASCO crankset, 170mm

- MTB flat (platform) pedals

---WHEELS---

- 26 inch double wall rims

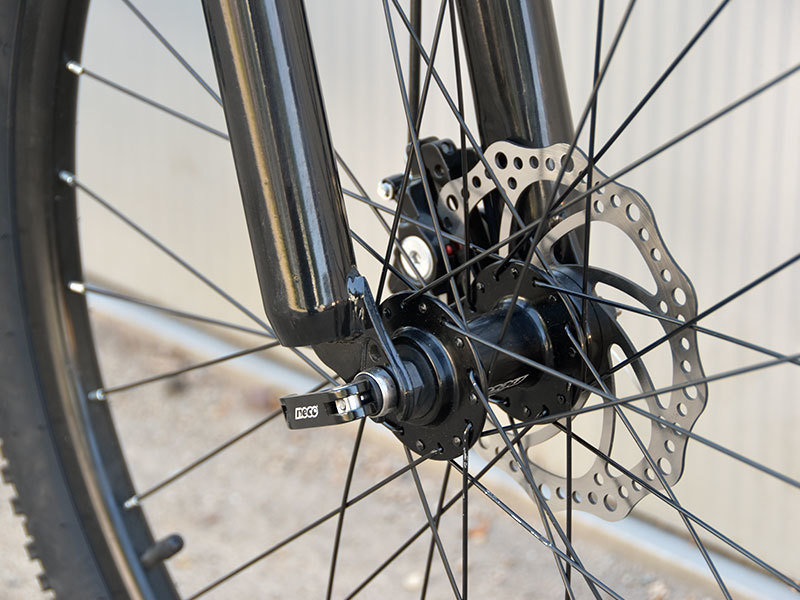

- Disc mount front and rear NECO hubs, QR open/close

- Freehub body, cassette

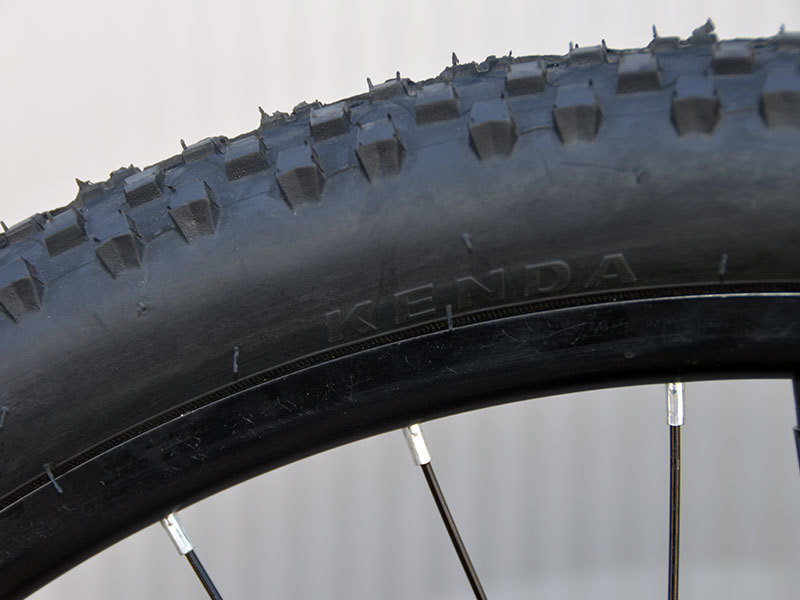

- KENDA 26x1.95 tires (50-559)

---STEERING---

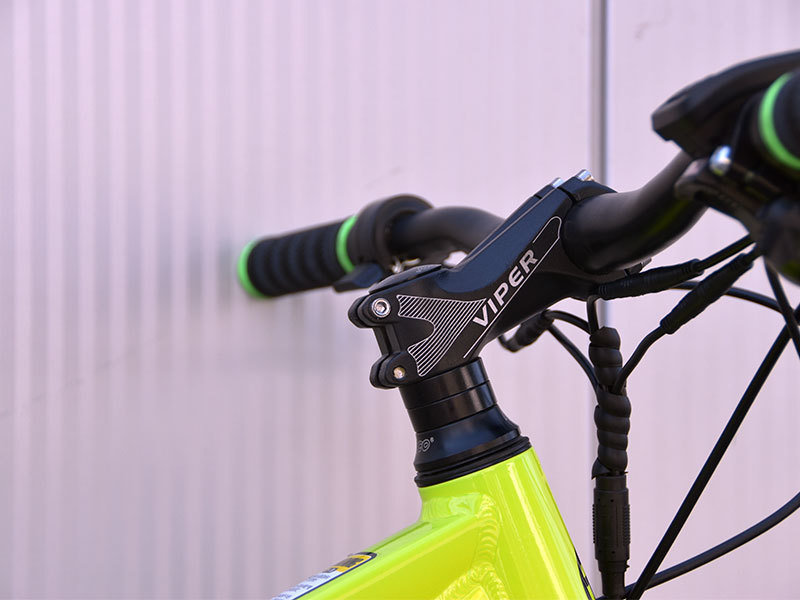

- 700mm steerer Viper, 2cm upsweep, 2cm backsweep,6061 Alu Alloy

- 75mm stem,31.8 clamp 15degree up

- NECO headset, integrated
